The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
C724



Manufacturer/CompetitorC.E.Niehoff DelStar Upgrade
Part No.C724 100-25205
SeriesC700 250
DesignBrushless Brushless
Mount7" Hinge Left 60° T1 L60º
Volts24 24
Amps @ 2000 RPM (Rotor) 215A 215A
Amps @ 6000 RPM (Rotor) 350A 320A
Ground- Negative
RegulatorAlt. Mounted Internal
Pulley- No
Product Specs. 100-25205"
Technical Bulletin

NOTES: Insulated, w/ Threaded Mtg. Holes

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

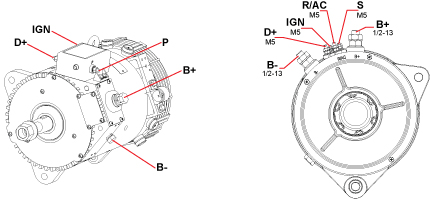

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
