The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
100-302071

100-30207.jpg    100-30207-D.jpg


Part No. 100-302071
Series 300
Design Brushless
Mount CRADLE
Volts 24
Amps @ 2000 RPM (Rotor) 225A
Amps @ 6000 RPM (Rotor) 330A
Ground Negative
Regulator Remote
Pulley 8-Groove Pulley
Product Specs. 100-302071
Technical Bulletin

NOTES: B+ Terminal @1:00 w/ 8S Pulley

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

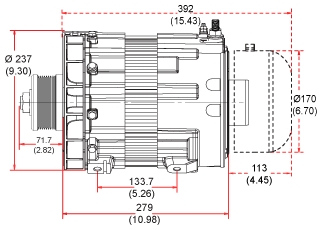

Dimensions:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication. Verify connections before replacing the unit.
