The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
PX320S



Manufacturer/CompetitorPennTex DelStar UpgradeDelStar Upgrade
Part No.PX320S 100-17107100-17105
SeriesPX-3 171170
DesignBrush BrushlessBrushless
MountJ 180 4" Long Hinge 4" J180 Long Hinge4" J180 Long Hinge
Volts12 1212
Amps @ 2000 RPM (Rotor) 135A 145A210A
Amps @ 6000 RPM (Rotor) 200A 250A350A
GroundNegative NegativeInsulated
RegulatorRemote InternalRemote
Pulley- NoNo
Product Specs. 100-17107"100-17105"
Technical Bulletin

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

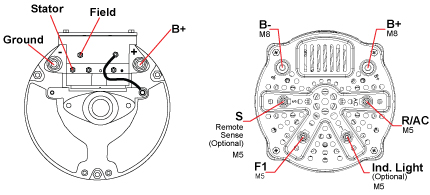

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
