The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
C703A



Manufacturer/CompetitorC.E.Niehoff DelStar Upgrade
Part No.C703A 100-312091
SeriesC700 310
DesignBrushless Brushless
MountCradle CRADLE
Volts24 24
Amps @ 2000 RPM (Rotor) 200A 245A
Amps @ 6000 RPM (Rotor) 350A 360A
GroundNegative Negative
RegulatorAlt. Mounted Internal
Pulley- 8-Groove Pulley
Product Specs. 100-312091"
Technical Bulletin

NOTES: Internal V. Regulator & 8G-Pulley

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

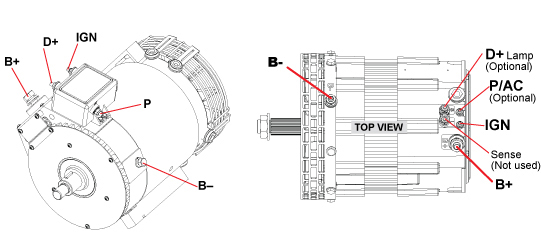

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
